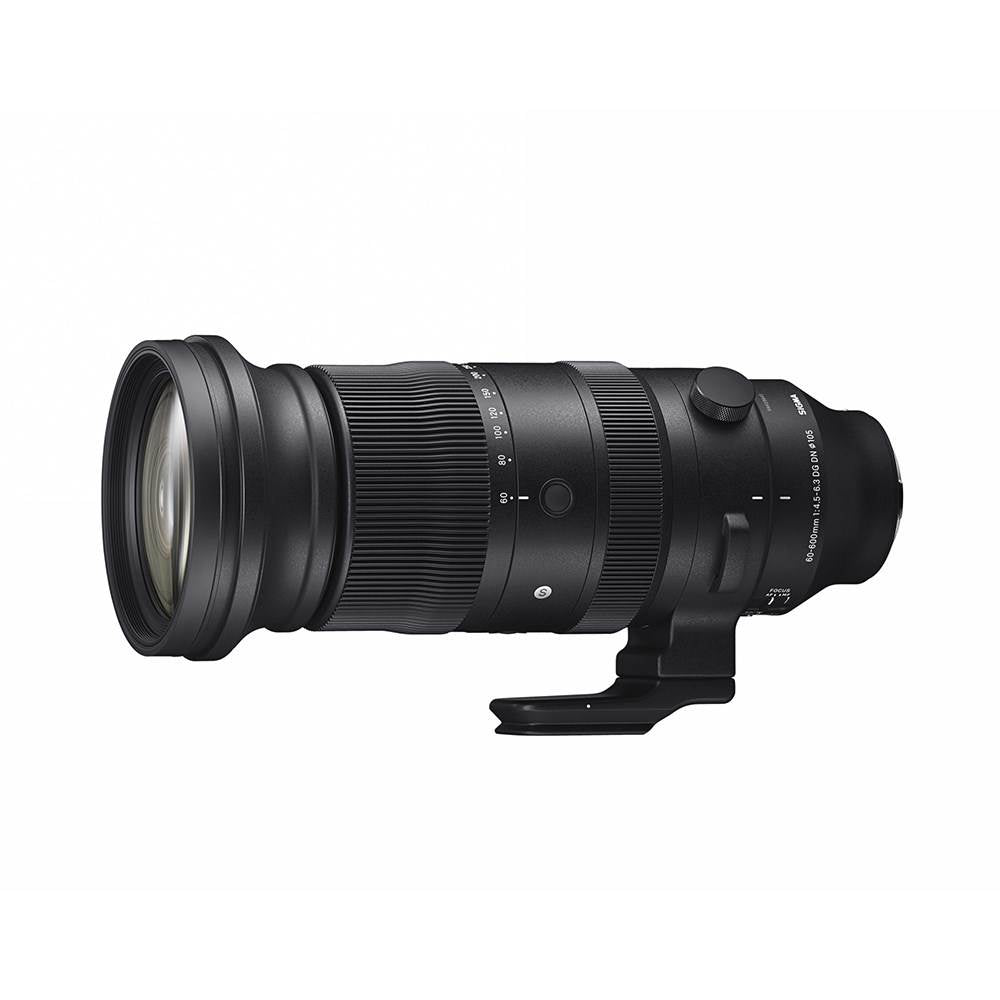

Sigma 60-600mm f/4.5-6.3 DG DN OS Sports Lens For L-Mount

Key Features

• World’s only 10x zoom for full-frame mirrorless cameras
• Outstanding image quality at any aperture
• Compatible with Sigma USB Dock for L-Mount to update firmware
• Up to 1200mm with the optional TC-2011 2x Teleconverter L-Mount and 840mm when using Sigma TC-1411 1.4x Teleconverter L-Mount
• 7-stops optical image stabilisation (wide) 6-stops (tele)
• Newly developed high-speed HLA (High-response Linear Actuator) AF system
• Ergonomic design with customisable AFL button, custom and focus switches
• Dust- and splash-resistant structure
• 9-bladed rounded aperture diaphragm
• High-precision, durable brass bayonet mount

Sigma 60-600mm f/4.5-6.3 DG DN OS Sports Lens For L-Mount Summary

Designed for fast-paced subjects including wildlife photography, the Sigma 60-600mm f/4.5-6.3 DG DN OS Sports Lens For L-Mount is the world’s first 10x optical zoom lens for full-frame mirrorless cameras. The ultra-telephotolens combines an all-new, ultra-fast AF motor with an advanced optical design for impressive results, delivering outstanding image quality and excellent focus performance.

Sigma has also upgraded the optical stabilisation system, with the 60-600mm f/4.5-6.3 DG DN OS Sports lens providing a 6-stop advantage at the telephoto end, and an impressive 7-stop at the wide end of the zoom. This offers class-leading performance ensuring great low light capabilities, especially when combined with the convenience of the push-pull zoom mechanism, first seen in the Sigma 150-600mm F/5-6.3 DG DN OS Sports Lens For L Mount. Weather resistance, a close minimum focusing distance and teleconverter compatibility add to the versatility of this L-mount lens.

Photographers and videographers can streamline their workflow with a series of lens barrel controls, adjusting settings instantly to support pro-level adaptability. Controls include customisable AFL buttons, focus mode and focus limiter switches together with an OS switch, zoom lock and a de-clickable aperture.

Sigma 60-600mm f/4.5-6.3 DG DN OS Sports Lens For L-Mount in More Detail

Outstanding optical performance

The SIGMA 60-600mm F4.5-6.3 DG DN | Sports lens delivers characteristically high optical quality, which is capable of meeting the demands of professional fast-action photographers and film-makers. The optical design includes 27 elements in 19 groups, with 2 FLD and 3 SLD high performance glass elements to correct chromatic aberration, which is a common optical issue often visible in ultra-telephoto lenses. The super telephoto lens is capable of delivering edge-to-edge sharpness across the entire zoom range and throughout the aperture range.

You can shoot close-ups with a short minimum focusing distance of 45cm at the wide end of the zoom, while at 200mm the lens offers a maximum magnification ratio of 1:2.4. This allows the Sigma 60-600mm f/4.5-6.3 DG DN OS Sports to be used for detailed macro-style shots, adding to its overall versatility.

Improved Optical Stabilisation

The lens features a built-in Optical Stabiliser function (OS), which employs Sigma’s newly developed OS2algorithm. This improves image stabilisation performance significantly, for up to 7-stops of shake compensation at the wide end of the zoom range and a 6-stop advantage at the telephoto end. This allows you to capture sharp results when working handheld, even in lower light conditions, indoors and in foliage for example.

The Optical Stabilisation OS function has two modes, with Mode 1 ideal for general everyday shooting, while Mode 2 is designed for panning. Mode 2 is ideal for tracking moving subjects such as vehicles, aircraftand birds. Tracking OS works by combining an acceleration sensor with Sigma’s Intelligent OS software to enable effective stabilisation except in the panning direction, for a smoother viewfinder image and easier tracking.

All-new high-speed AF motor

This is the first Sigma lens to include a newly developed High-response Linear Actuator motor (HLA), which is a high-output AF motor with advanced electronic control that delivers very quiet autofocus performance with exceptional speed and precision.

The new AF motor also provides high focus-following performance, which is important for action photographers where the perfect shot is fleeting and is fully compatible with Sigma, Leica and Panasonic camera AF systems.

Advanced features for professional users

As one of Sigma’s Sports line lenses, the 60-600mm DG DN OS comes equipped with a range of professional-level features for professional use. in the first instance the lens is manufactured in Aizu in Japan, and has a very high quality construction, which combines robustness with precision and attention to detail.

A multi-material structure includes magnesium, CFRP¹, and TSC², which are optimally arranged to maximise their inherent characteristics. As a result, the lens barrel is lighter than Sigma’s existing 60-600mm DSLR lenses, while retaining the same durability for a wide variety of environments.

To offer photographers speed and accuracy when focusing, the lens features Dual Action Zoom, where zooming in and out is possible either by rotating the zoom ring or simply by pushing or pulling the end of the lens, to adjust zoom quickly during fast-changing scenes.

Further lens controls include:

1. Three AFL buttons can be customised to preferred functions via the camera
2. Zoom Lock switch to stop zoom creep
3. Tripod foot orientation adjustment
4. Focus Mode switch
5. Focus Limiter switch to limit the AF focus range
6. Two-mode Optical Stabiliser switch
7. Custom Mode switch

An Arca Swiss-compatible magnesium alloy tripod socket is incorporated into the body for direct attachment onto your tripod plate. The leg can also be removed and replaced with optional interchangeable tripod sockets (available separately).

A high quality rubber gripped and lockable lens hood is included, which can be quickly removed and attached while using the push-pull zoom feature. The splash resistant design³includes the mount connection, manual focus ring, zoom ring, switches, switch panel and exterior connection helping to prevent dust and dirt from entering the lens. In addition the front element features a water and oil-repellent coating to make the element easier to clean when it gets wet or dirty.

Other features

• Internal focus system
• Compatible with Lens Aberration Correction depending on the camera model
• Support for DMF and AF+MF
• Super Multi-Layer Coating
• Nano Porous Coating
• Water and oil-repellent coat
• Lens Heater Retainer
• Aperture Ring
• Aperture Ring De-click Switch
• Aperture Ring Lock Switch
• Tripod Socket TS-121 (replaceable lens foot type) with orientation adjuster
• Designed to minimise flar

Evaluated with Sigma

Optional accessories

To complement their lenses, Sigma manufactures high quality lens filters, which are compatible with the 105mm thread on the 60-600mm f/4.5-6.3 DG DN OS Sports Lens, which include:

• Sigma 105mm WR Ceramic Protector and 105mm Protector
• Sigma 105mm WR UV Filter
• Sigma 105mm WR Cir-Pol (circular polariser)

You also benefit from these dedicated L-mount accessories:

• Sigma USB Dock for L-Mount
• Sigma TC-1411 1.4x Teleconverter L-Mount and TC-2011 2x Teleconverter L-Mount

Sigma 60-600mm f/4.5-6.3 DG DN OS Sports Lens For Leica L Specifications

*1 Carbon Fibre Reinforced Plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.

*2 Thermally Stable Composite, a polycarbonate with a thermal expansion rate similar to that of aluminium. Its high affinity to metal parts contributes to high manufacturing quality standards.

*3 The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render

What's in the Box

• Sigma 60-600mm f/4.5-6.3 DG DN OS Sports Lens For L-mount
• Case
• Front Cap LCF-105 III
• Cover Lens Cap LC-740E
• Hood LH1144-02
• Tripod Socket TS-121 (replaceable)
• Rear Cap
