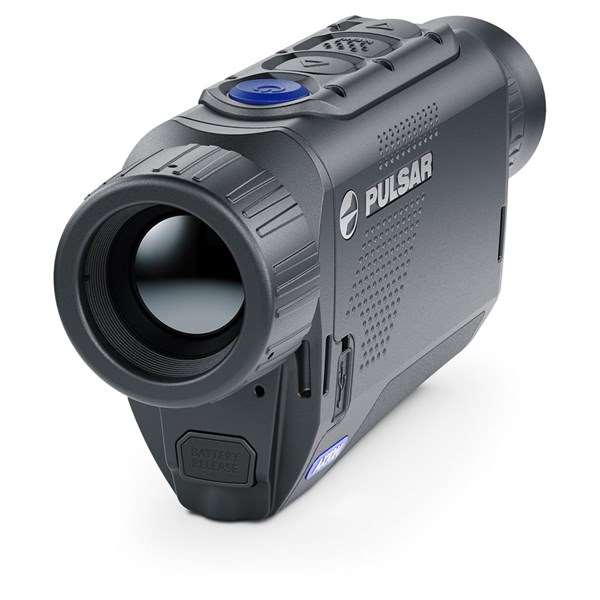

Pulsar Axion XQ30 Pro Thermal Imaging Monocular

Key Features

• New 384x288 thermal sensor, 17µm pixel pitch, <25mK NETD
• 30mm f/1.2 lens with 1050m detection range
• 13.3° field of view
• 600x400 AMOLED display
• Picture-in-Picture viewing mode
• 3 sensitivity amplification levels with contrast/brightness control
• 8 colour palettes for flexible viewing
• 8-hour battery life with APS3 battery
• Fast USB-C charging
• IPX7-rated magnesium alloy body
• Built-in photo and video recording
• Stream Vision 2 remote app compatibility

Pulsar Axion XQ30 Pro Thermal Imaging Monocular Summary

The Axion XQ30 Pro is Pulsar’s latest compact thermal monocular, which replaces the popular XM30F with a newly upgraded 384x288 resolution sensor. This enhanced 17µm sensor with <25mK NETD sensitivity provides sharper, cleaner thermal imaging and can detect heat signatures at distances of up to 1050 metres. It’s a highly capable tool for wildlife observation, environmental monitoring, search and rescue, and for general outdoor use.

A 30mm f/1.2 objective lens, wide 13.3° field of view, and 600x400 AMOLED display deliver bright, detailed images, even when you’re out in frosty or low-contrast conditions. The ergonomic design is compact and lightweight, weighing in at just 300g, while the magnesium alloy housing is robust and waterproof to IPX7.

With up to 8 hours of battery life and USB-C fast charging, the Axion XQ30 Pro is perfect for extended use in the field. Additional features include three sensitivity amplification levels, eight viewing colour palettes, built-in photo and video recording, and Picture-in-Picture mode for closer inspection without losing the wider view.

Stream Vision 2 compatibility adds remote control and firmware updates via your phone or tablet, making this a reliable and advanced thermal device for a wide range of outdoor uses.

Pulsar Axion XQ30 Pro Thermal Imaging Monocular in More Detail

Upgraded Thermal Sensor

The Axion XQ30 Pro is equipped with a pro-grade 384x288 thermal sensor with 17µm pixel pitch and <25mK NETD sensitivity, combined with a fast 30mm f/1.2 lens. This configuration delivers excellent heat detection, even in challenging weather, with high contrast and clarity for spotting subtle temperature differences.

Enhanced Detection with Sensitivity Boost

Three sensitivity amplification levels help users adapt to different weather and temperature conditions. Filtration algorithms, brightness and contrast controls work together to render scenes more clearly, helping to distinguish warm objects from their surroundings when observing at different times of day or night.

Wide Field of View

A 13.3° field of view enables fast scanning of wider areas. This makes it easier to track movement and keep context of the surroundings, while maintaining the ability to zoom in for closer inspection.

Picture-in-Picture View

Picture-in-Picture mode adds a secondary zoomed view within the main display, occupying just 10% of the screen. This feature supports detailed observation without losing sight of the wider scene.

High-Quality AMOLED Display

The 600x400 resolution AMOLED screen delivers smooth, high-contrast visuals and accurate colour rendering, even in frosty or low-temperature environments. Thermal images are sharp and easy to interpret.

Compact, Ergonomic and Robust

Weighing just 300g, the Axion XQ30 Pro is highly portable and fits comfortably in the hand. Its compact size is matched with a tough magnesium alloy housing, which protects the internals while doubling as a heatsink to maintain efficient operation. IPX7 waterproofing ensures continued performance in rain and wet conditions, while the device withstands everyday knocks with ease. Button placement is intuitive, with all key functions accessible with minimal hand movement.

Up to 8 Hours Battery Life and Fast Charging

Powered by a rechargeable APS3 battery, the Axion XQ30 Pro runs for up to 8 hours (temperature dependent) on a single charge. Fast USB-C charging and hot-swap battery capability allow you to stay out longer. The included battery can be recharged using mains power or USB with the Pulsar charger.

Eight Custom Colour Palettes

Choose from 8 thermal display colour options to suit different environments and preferences:

• White Hot, Black Hot, Red Hot – Optimised for thermal detection
• Rainbow, Ultramarine – Enhanced object recognition
• Red Monochrome, Sepia, Violet – Designed for prolonged night-time viewing

Built-In Photo and Video Recording

Capture still images or video footage directly from the device. Internal storage saves hours of video and thousands of images, all accessible with one-touch recording for quick reactions during observations.

Stream Vision 2 Connectivity

With built-in Wi-Fi, connect the Axion XQ30 Pro to your Android or iOS device using the free Stream Vision 2 app:

• Remotely control settings, start/stop recording and view live imagery
• Access, download and share your stored photos and video clips
• Perform over-the-air firmware updates to keep your monocular up to date

What's in the Box

• Pulsar Axion XQ30 Pro Thermal Imaging Monocular

Specifications
