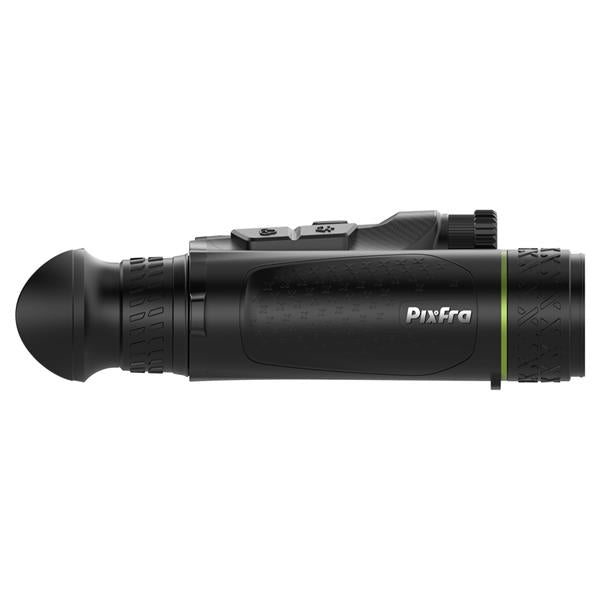

Pixfra Draco D635-4K Multispectral Binoculars

Pixfra Draco D635-4K Multispectral Binoculars Summary

The Pixfra Draco D635-4K is a high-end multispectral binocular that combines high-resolution thermal imaging with 4K digital night vision and an integrated laser rangefinder in a compact handheld format. It uses a 640 × 512 thermal sensor, which is paired with a 4K digital channel, providing increased thermal detail and wider field coverage compared with lower-resolution systems.

Thermal imaging operates with a NETD sensitivity below 15 mK, allowing fine temperature differences to remain visible when observing complex environments such as woodland, open terrain or mixed ground cover. A 35 mm thermal objective delivers a wide field of view while maintaining strong detection capability, with heat detection rated up to 1,800 metres. The digital channel records and displays 4K footage and switches automatically between day and night modes based on ambient light.

This model suits users who require the highest level of thermal detail for wildlife observation, land management and extended outdoor monitoring, while retaining a portable, handheld form factor.

Pixfra Draco D635-4K Key Features

• 640 × 512 thermal sensor with sub-15 mK sensitivity for high-detail thermal imaging
• 35 mm thermal objective providing a wide thermal field of view
• 4K digital night vision channel with automatic day and night switching
• Integrated laser rangefinder measuring distances up to 1,000 m
• 1920 × 1080 OLED display delivering consistent output across viewing modes
• Electronic image stabilisation to reduce visible handheld movement
• Detachable IR illuminator with 850 nm and 940 nm options
• Replaceable dual 18650 battery system supporting extended field use

Pixfra Draco D635-4K Multispectral Binoculars in More Detail

Multispectral viewing

The Draco D635-4K sits at the top of the Draco range by combining a 640 × 512 thermal sensor with a compact optical design. The increased thermal resolution provides a denser image, improving subject definition and edge clarity when scanning wide scenes or observing smaller heat sources at distance. Thermal sensitivity below 15 mK enhances separation between objects with similar surface temperatures, which is particularly noticeable in complex or cluttered environments.

The 35 mm thermal objective delivers a wide thermal field of view measuring 21.9 metres at 100 metres, supporting efficient scanning while maintaining a stated detection range of up to 1,800 metres. Base thermal magnification starts at 2.6x and extends digitally up to 20.8x, allowing flexible framing without excessive image breakdown at moderate zoom levels.

Digital night vision and low-light use

The digital channel uses a 3840 × 2160 CMOS sensor for daytime and night-time observation. Digital magnification ranges from 5.5x to 44x, with a wide field of view measuring 35.3 metres at 100 metres. Automatic switching between day and night modes reduces the need for manual changes as lighting conditions vary throughout the day.

A detachable IR illuminator is supplied with both 850 nm and 940 nm emitters, allowing users to select between stronger illumination or reduced visibility depending on conditions and operational preference.

OLED Display

All viewing modes are presented through a 0.49-inch OLED display with a 1920 × 1080 resolution. The display maintains consistent brightness, contrast and colour handling across thermal palettes and digital views, helping detail remain visible during extended observation sessions. Image processing, including PIPS 3.0, applies scene optimisation and colour handling to maintain edge definition and tonal separation when scanning complex backgrounds.

Laser ranging

A built-in laser rangefinder measures distances up to 1,000 metres and overlays range information directly within the viewfinder. Distance data can be viewed alongside both thermal and digital imagery, supporting spatial awareness when monitoring movement, estimating range or surveying larger outdoor areas.

Handling and field operation

Despite its higher-resolution thermal system, the D635-4K maintains a compact body measuring 195 × 130.6 × 61.7 mm. Electronic image stabilisation helps reduce visible shake during handheld use, particularly at higher digital magnifications. Control placement supports one-handed operation, with tactile buttons that can be identified without lowering the binoculars from the eye.

Power is supplied by two replaceable 18650 batteries, providing up to around nine hours of operation depending on temperature, viewing mode and recording use. Spare batteries can be swapped in the field, and the unit supports charging from mains power and portable power banks for extended sessions.

Zoom control is handled via a multi-function control wheel positioned for index finger operation, allowing smooth zoom adjustment without changing grip. A four-button layout provides access to core functions, with silent button operation and controls that can be located and used by touch in low-light conditions.

Recording and connectivity

Video and still images are recorded internally, with footage reflecting the active viewing mode. Wi-Fi connectivity supports both 2.4 GHz and 5 GHz bands, enabling wireless transfer and remote viewing on compatible mobile devices when required.

Frequently Asked Questions

What thermal resolution does the Draco D635-4K use?

It uses a 640 × 512 thermal sensor with sensitivity rated below 15 mK.

How far can it detect heat signatures?

The stated detection range is up to 1,800 metres depending on conditions.

Does it include a laser rangefinder?

Yes, a built-in laser rangefinder measures distances up to 1,000 metres.

Can it be used during the day and at night?

Yes, it includes a 4K digital channel and switches automatically between day and night modes.

What batteries does it use?

It uses two replaceable 18650 rechargeable batteries, with spares supplied.

Is an IR illuminator included?

Yes, a detachable IR illuminator is supplied with both 850 nm and 940 nm emitters.

Does it support wireless connectivity?

Yes, it supports Wi-Fi on both 2.4 GHz and 5 GHz bands.

What’s in the box

• Pixfra Draco D635-4K Multispectral Binoculars
