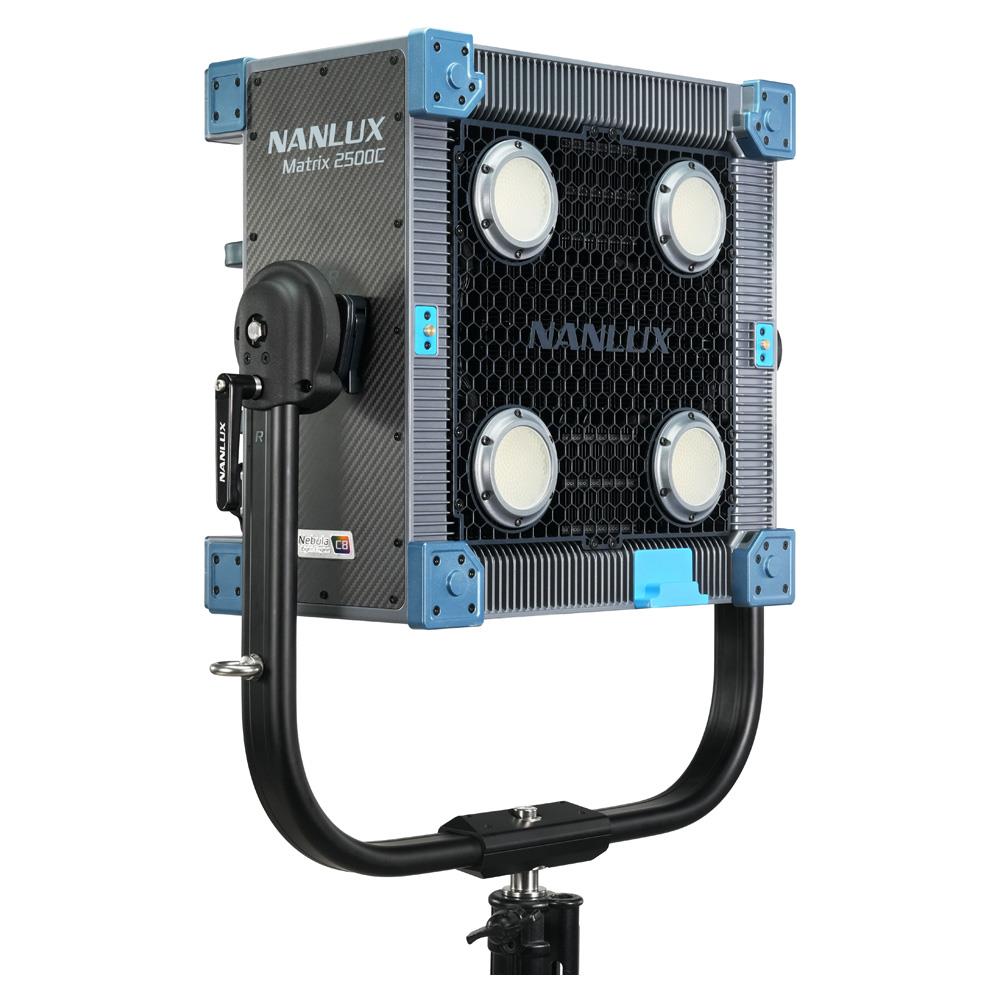

Nanlux Matrix 2500C with Flight Case

Nanlux Matrix 2500C with Flight Case Summary

The Nanlux Matrix 2500C with Flight Case is a high-output RGB LED fixture created for film, television, virtual production and commercial studios that require both substantial output and extensive colour control. Its integrated four-head design combines 2500W of power with Nanlux’s Nebula C8 light engine, providing a colour temperature range from 1,000K to 20,000K alongside full RGB capabilities and advanced colour adjustment.

The fixture can operate independently or as part of larger Matrix arrays, allowing productions to build powerful modular lighting systems while maintaining consistent colour and beam characteristics. The included flight case helps protect the fixture during transport between studios and locations.

Nanlux Matrix 2500C with Flight Case Key Features

• 2500W integrated four-head RGB LED fixture
• Nebula C8 full-colour light engine
• 1,000K to 20,000K colour temperature range
• 67,900 lux output at 3m with FL-MT25 Fresnel
• Designed for modular multi-fixture arrays
• IP66-rated weather-resistant construction
• Seven professional lighting modes
• Advanced wired and wireless control options

Nanlux Matrix 2500C with Flight Case In More Detail

Full-Colour Output At Production Scale

The Matrix 2500C combines high output with advanced colour control in a format intended for professional productions. Unlike traditional large-format fixtures focused primarily on white light, the Matrix 2500C allows users to create saturated colours, subtle colour effects and accurate lighting matches while maintaining the output levels needed for larger sets and studio environments.

Nebula C8 Colour Engine

At the heart of the Matrix 2500C is Nanlux’s Nebula C8 colour engine, which combines Deep Red, Red, Amber, Lime, Green, Cyan, Blue and Indigo LEDs. This system provides a wider colour gamut, improved saturation and more refined colour mixing than conventional RGB solutions. The fixture supports colour temperatures from 1,000K to 20,000K with ±200 green and magenta adjustment, offering extensive flexibility when matching practical lighting, environmental conditions or virtual production content.

Built For Virtual Production And Creative Lighting

The Matrix 2500C offers seven lighting modes including CCT, HSI, HSIW, RGBW, XY Coordinates, Gel and Effect modes. These options allow lighting teams to move beyond standard white-light operation and create complex colour environments directly from the fixture. For virtual production workflows, individual lamp heads can be controlled independently, enabling dynamic lighting responses that synchronise with changing on-screen content.

Modular Array Configuration

Like the Matrix 2500B, the 2500C has been developed around the concept of scalable lighting arrays. Dedicated mounting frames allow multiple fixtures to be combined into larger lighting systems, including four-light configurations capable of delivering substantial output across large shooting spaces. The closely spaced lamp arrangement helps create an even beam while maintaining high light density.

Engineered For Professional Production

The Matrix 2500C features a one-piece magnesium alloy housing with an IP66 weather-resistant rating. An advanced front-to-rear cooling system helps maintain stable operation during extended use, particularly when fixtures are grouped together. Four selectable fan modes allow crews to balance cooling performance and noise levels according to production requirements.

Frequently Asked Questions

What is the difference between the Nanlux Matrix 2500C and Matrix 2500B?

The Matrix 2500C is a full-colour fixture using the Nebula C8 light engine with RGB capabilities, seven lighting modes and a 1,000K to 20,000K colour temperature range. The Matrix 2500B is a bi-colour fixture focused on white-light applications with a 2,700K to 6,500K range.

Is the Matrix 2500C worth choosing over the Matrix 2500B?

Productions that require colour effects, virtual production workflows, creative lighting design or advanced colour matching will benefit from the Matrix 2500C. For applications focused primarily on daylight and tungsten lighting, the Matrix 2500B may be sufficient.

How bright is the Nanlux Matrix 2500C?

The Matrix 2500C can produce up to 67,900 lux at 3 metres at 5600K when paired with the FL-MT25 Motorized Fresnel Lens set to 16°.

What is a Matrix lighting array?

A Matrix lighting array combines multiple Matrix fixtures into a larger modular lighting system, creating a dense and evenly illuminated source for large-scale productions.

Can multiple Matrix fixtures be linked together?

Yes. Matrix fixtures can be synchronised through dedicated power and control connections, allowing multiple units to operate as a coordinated lighting array.

Is the Matrix 2500C suitable for outdoor productions?

Yes. The fixture features an IP66-rated magnesium alloy housing that provides protection against dust and challenging weather conditions.

What control systems does the Matrix 2500C support?

Control options include onboard controls, NANLINK App 2.0, DMX/RDM, CRMX, Art-Net, sACN and NFC configuration.

What’s in the Box

• FL-MT25 Motorized Fresnel Lens
• Flight Case
• Power Cable
• Documentation

Specifications
