Manfrotto 504X & Alu Fast Twin Tripod
Manfrotto 504X & Alu Fast Twin Tripod
Found it cheaper elsewhere? Ask us about price matching.
Trade in your old gear towards this purchase.
A standout choice for its class — our team's pick for image quality and handling.
TRADE-UP Trade in & save Looking to sell your Manfrotto 504X & Alu Fast Twin Tripod?
- Award winning service for over 50 years
- Free UK delivery on orders over £50
- Buy with confidence from a trusted retailer
Product Details
Key Features
- Fluid video head with 4-step counterbalance system up to 6.5 kg
- Flat base offers great versatility
- Easy set up with FAST Lever Lock and 3-angle selection mechanism
- 100 mm half ball, compatible with a 75 mm half ball adapter
- Side lock plate attachment and two 3/8’’ easy link connectors.
Manfrotto 504X Fluid Video Head with 645 Fast Twin Aluminium Tripod (MVK504XTWINFA) Summary
This video tripod kit combines the smooth Manfrotto 504X Fluid Video Head and sturdy 645 Fast Twin Tripod in aluminium.
The complete range of Bridging technology heads, designed to provide optimum support for the latest camera and camcorder, has a new incredible video head, the 504X. This new video head replaces the successful 504HD with a completely new design and many other features. The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

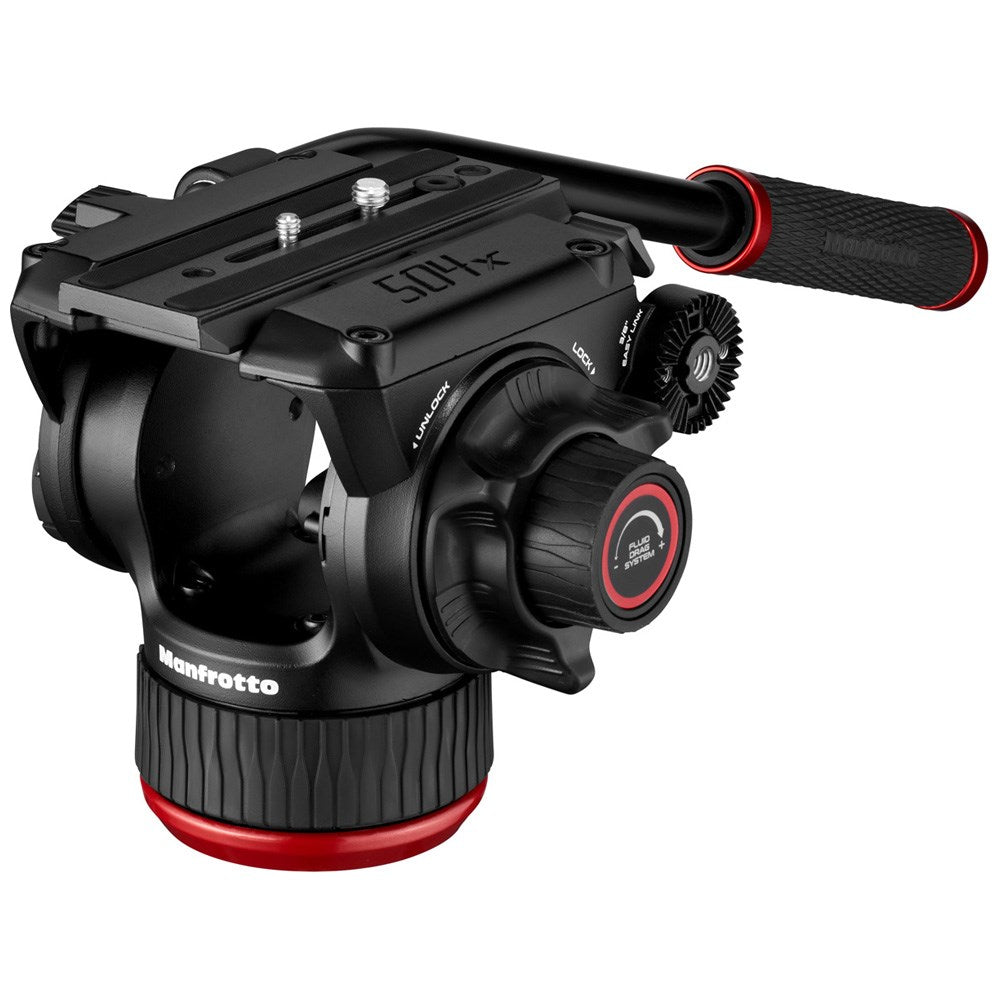

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.
The 645 FTT Fast Twin Aluminium Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The synchronised closure mechanisms between the upper and lower locks enable videographers to control the entire leg with a single lock and get to work in record time.
The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.
It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.
Supplied with its own padded carrying bag.
Easy link connectors
comes with Manfrotto anti rotation technology and Arri pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side a cap, that cover 3/8” easy link connector, to avoid cutting during the use.
4 steps CBS
The head offers unrivalled stability and allows smooth shooting thanks to 4-steps counterbalance System up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G.
- STEP 0: off
- STEP 1: 2,2 kg / 4,8 lb
- STEP 2: 4,4 kg / 9,7 lb
- STEP 3: 6,5 kg / 14,3 lb
Flat base
For more options for shooting on sliders, jibs or other accessories.
Sliding quick release plate
A sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment, keeping video equipment stability and balance.
New fluid technology
The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range, boosting the smoothest and judder-free pan and tilt movements.
Brakes
Independent brakes on TILT and PAN axes. The 504X increases the capability of keeping the heavy equipment safe, stable and in position.
Bubble level
The back bubble level lets you level the heads even in low light conditions.
Manfrotto 504X Fluid Video Head with 645 Fast Twin Aluminium Tripod (MVK504XTWINFA) Specifications
- Weight: 6.2 kg
- Safety Payload UNI/PdR 105:2021: 12 kg
- Counterbalance System: Variable Steps
- Counterbalance Weight: 2.2, 4.4, 6.5 kg
- Maximum Height: 173 cm
- Min Height: 43.5 cm
- Base Diameter: 75 mm
- Bubble Spirit Level (No.): 1
- Center Of Gravity: 55 mm
- Carrying Bag Included: yes
- Closed Length: 89.5 cm
- Top Attachment: 1/4? screw, 3/8? screw
- Ball Flat: Flat
- Safety Payload Weight: 12 kg
- Powered By (Batteries): Lithium
- Easy Link: Yes (with anti-rotation)
- Front Tilt: -70° / +90°
- Head Type: Video/Fluid Head
- Leg Type: Twin
- Leg Angles: 20°, 50°, 70°
- Leg Lock Type: Flip Lock
- Material: Aluminium
- Pan Bar Included: Yes
- Pan Drag: continuously adjustable from 0 to max level
- Panoramic Rotation: 360 °
- Plate Type: 504PLONGR-1 QR plate
- Spreader: mid level - variable arm length
- Tilt Drag: continuously adjustable from 0 to max level
Accessory Compatibility: 114MV cine dolly ; 181B folding dolly ; 165 On-Ground Tripod Spreader ; MVAPANBARM; MVAPANBARL telescopic pan bar
