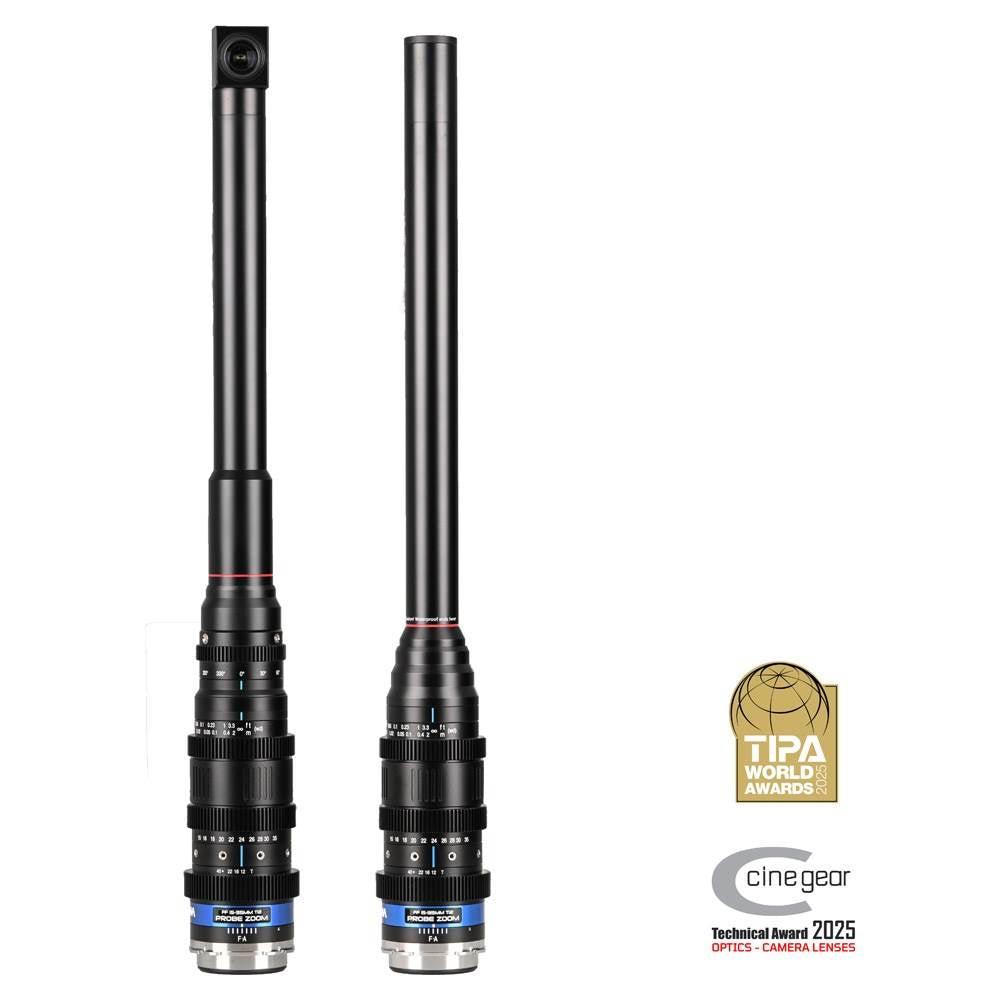

Laowa Probe Zoom 2-Lens Bundle 15-35mm T12 Lens Arri PL

Laowa Probe Zoom 2-Lens Bundle 15-35mm T12 Lens Arri PL Summary

The Laowa Probe Zoom 2-Lens Bundle 15-35mm T12 Lens Arri PL is a full frame macro cine zoom kit supplied with two viewing modules, the Direct and 90°. It is based on Laowa’s 15-35mm T12 Probe Zoom lens, extending coverage to 35mm with a 2.3x zoom ratio.

This bundle is  ideal for cinematographers who need ultra-wide to wide macro imagery with both forward framing and right-angle composition options. The 15-35mm T12 optical design delivers a broad zoom span and extreme close working capability, while the Direct and 90° modules enable rapid changes to the shooting axis without changing the core lens body. It supports studio, tabletop, set-based and environmental workflows requiring flexible macro perspective that would be impossible otherwise.

Laowa Probe Zoom 2-Lens Bundle 15-35mm T12 Lens Arri PL Key Features

• 15-35mm full frame probe zoom with Direct and 90° modules
• Constant T12 aperture with nine-blade diaphragm
• 2.3x zoom ratio across the focal range
• Up to 2.3x maximum magnification
• 5mm minimum working distance from subject
• Waterproof tubular barrel approximately 40cm in length
• 0.8 MOD cine gearing for focus and iris
• ARRI PL mount with back focus adjustment

Laowa Probe Zoom 2-Lens Bundle 15-35mm T12 Lens Arri PL in More Detail

Ultra-wide to wide macro coverage

At 15mm, the lens reaches a 110.5° angle of view on full frame, providing expansive spatial rendering at close range. The zoom extends to 35mm, narrowing the angle of view to 63.4° while retaining macro capability. This broader span supports transitions from exaggerated ultra-wide perspective to a more natural wide field without changing lenses.

Extended magnification range

A minimum working distance of 5mm enables the front section to approach extremely small subjects. Maximum magnification reaches 2.3x across the zoom span, allowing frame-filling detail on textures, surfaces and miniature elements. The extended tubular design separates the operator from the focal plane, aiding lighting control and camera clearance in tight setups.

Parfocal zoom performance

The lens maintains focus throughout the 2.3x zoom ratio, allowing focal length adjustments without re-pulling focus. This supports controlled crash zooms and perspective-based framing techniques without additional focus correction. Manual focus is fully mechanical, with 0.8 MOD gearing integrated for compatibility with follow focus systems and cine motors.

Module configurations

The Direct module provides a straight optical path for conventional forward-facing compositions. The 90° module redirects the optical axis at a right angle, enabling lateral and ground-level framing without repositioning the camera rig. Both modules preserve the optical characteristics of the base 15-35mm design.

Cine housing and mount integration

The ARRI PL mount housing includes back focus adjustment for precise flange calibration. The housing diameter measures 68.8mm, and weight is approximately 1400g depending on module configuration. Standardised cine gearing supports integration into professional PL-mount workflows.

Frequently Asked Questions

Which modules are included in this bundle?

The bundle includes Direct and 90° viewing modules.

Does this bundle provide full frame coverage?

Yes, it covers full frame sensors without cropping.

Is this lens autofocus?

No, it uses fully manual focus with 0.8 MOD cine gearing.

Can it be used with standard ARRI PL cameras?

Yes, it is supplied in ARRI PL mount and supports back focus adjustment for correct flange alignment.

Laowa Probe Zoom 2-Lens Bundle 15-35mm T12 Lens Arri PL Specifications

What's in the Box

• Probe Zoom 15-35mm T12 - Direct View (ARRI PL mount)
• Probe Zoom 15-35mm T12 - 90° Degree (ARRI PL mount)
• Hard Case x 2
• Front Cap x 2
• Rear Cap x 2
• Toolbox x 2
• Lens support x 4
• Shim Set x 2
• User Manual - Electronic Card x 2
• Limited 1-Year Manufacturer Warranty per lens
