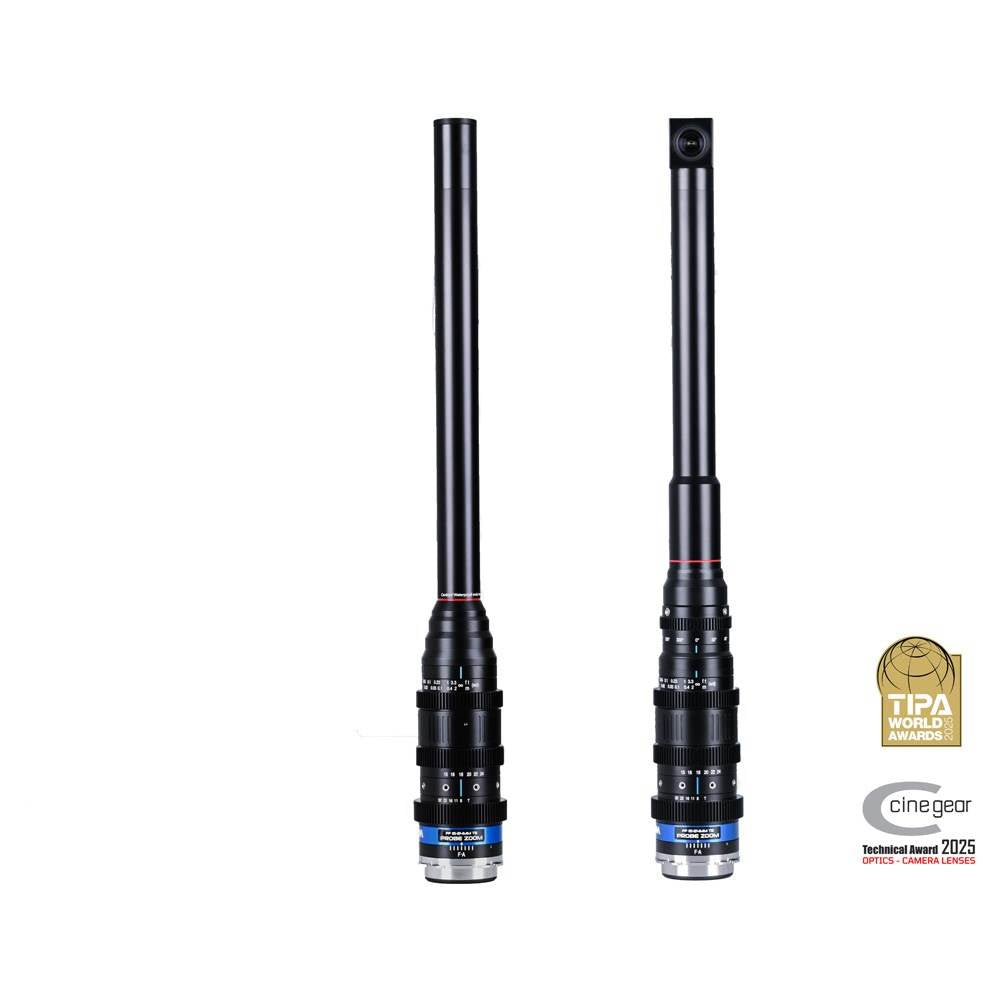

Laowa Probe Zoom 2-Lens Bundle 15-24mm T8 Lens Arri PL

Laowa Probe Zoom 2-Lens Bundle 15-24mm T8 Lens Arri PL Summary

The Laowa Probe Zoom 2-Lens Bundle 15-24mm T8 Lens Arri PL is a full frame macro cine zoom kit that comes with two viewing modules: Direct and 90°. It is based on the 15-24mm T8 Probe Zoom platform and offers ultra-wide perspective with close working distance.

This bundle suits cinematographers who need the core optical design of the 15-24mm T8 probe with both conventional and right-angle viewing options. The optical group provides a 1.6x zoom span with constant T8 transmission, while the Direct and 90° modules enable straightforward forward framing or lateral/ground-level perspectives without changing the core lens body. It supports studio, tabletop, commercial and environmental macro workflows where angle changes are required.

Laowa Probe Zoom 2-Lens Bundle 15-24mm T8 Lens Arri PL Key Features

• 15-24mm full frame probe zoom with Direct and 90° modules
• Constant T8 aperture with nine-blade diaphragm
• 1.6x zoom range with parfocal behaviour
• Up to 1.6x maximum magnification
• 5mm minimum working distance from subject
• Waterproof tubular barrel approximately 40cm in length
• 0.8 MOD cine gearing for focus and iris control
• ARRI PL mount with back focus adjustment

Laowa Probe Zoom 2-Lens Bundle 15-24mm T8 Lens Arri PL in More Detail

Ultra-wide macro perspective

At 15mm, the lens reaches a 110.5° angle of view on full frame, providing an expansive field while operating at close distance from the subject. The zoom range extends to 24mm, narrowing the field to 84.1° while retaining macro capability. This range supports exaggerated foreground scale and strong spatial depth near the minimum focusing distance.

Close working distance and magnification

A minimum working distance of 5mm enables the front section to approach extremely small subjects. Maximum magnification reaches 1.6x across the zoom span, allowing frame-filling detail on textures, surfaces and miniature subjects. The extended tubular design separates the operator from the focal plane, aiding controlled lighting and camera clearance in tight setups.

Parfocal zoom control

The lens maintains focus throughout the 1.6x zoom span, allowing focal length adjustments without re-pulling focus. This supports controlled crash zooms and perspective shifts in macro environments. Manual focus is fully mechanical, with 0.8 MOD gearing integrated for compatibility with follow focus systems and cine motors.

Module configurations

The Direct module provides a straight optical path for conventional forward-facing framing. The 90° module redirects the optical axis at a right angle, supporting ground-level and lateral compositions without repositioning the camera rig. Each module maintains the same optical performance and focal characteristics.

Cine housing and mount integration

The ARRI PL mount housing includes back focus adjustment to ensure precise flange calibration. The housing diameter measures 68.8mm and weight is approximately 1400g depending on module configuration. Standardised cine gearing supports integration into professional PL-mount workflows.

Frequently Asked Questions

Which modules are included in this bundle?

The bundle includes Direct and 90° viewing modules.

Is the optical performance different between modules?

No, modules alter viewing direction but retain the same 15-24mm T8 optical design.

Does the lens cover full frame sensors?

Yes, it provides full frame image coverage.

Is this lens autofocus?

No, it operates with fully manual focus and cine gearing.

Can it be used on standard ARRI PL mount cameras?

Yes, it is supplied in ARRI PL mount and supports back focus adjustment for correct flange alignment.

Laowa Probe Zoom 15-24mm T8 Lens Arri PL Specifications

What's in the Box

• Probe Zoom 15–24mm T8 lens – Direct View (ARRI PL mount)
• Probe Zoom 15–24mm T8 lens - 90° Degree (ARRI PL mount)
• Hard Case x 2
• Front Cap x 2
• Rear Cap x 2
• Toolbox x 2
• Lens support x 4
• Shim Set x 2
• User Manual - Electronic Card x 2
• Limited 1-Year Manufacturer Warranty per lens

Specifications
