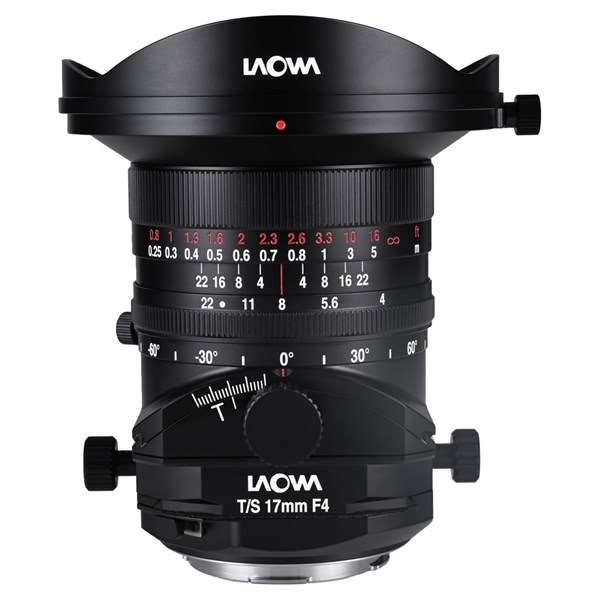

Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount

Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount Summary

The Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount is a manual focus ultra-wide prime lens that provides both tilt and shift movements for precise control over perspective and focus. It sits within Laowa’s architectural photography range and forms part of the wider tilt and shift series alongside the 15mm and 20mm alternatives.

This version combines perspective correction with focus plane control, allowing photographers to keep vertical lines straight while adjusting depth of field creatively across the scene. The lens covers full-frame sensors and can also be used on APS-C cameras.

A wide 17mm focal length captures expansive scenes suitable for architecture, interiors, landscape and real estate photography where maintaining natural geometry is important. Laowa’s Zero-D optical design keeps distortion extremely low across the frame, helping photographers produce images with accurate lines directly in camera.

Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount Key Features

• Manual focus 17mm ultra-wide prime with tilt and shift control
• Zero-D optical design maintains minimal distortion across the frame
• ±10° tilt adjusts the focus plane for creative depth control
• Maximum ±12mm shift corrects converging vertical lines in architectural scenes
• 14-blade diaphragm produces smooth defocus and distinct sunstars
• 86mm front filter thread accepts standard screw-in filters
• Built-in tripod support with Arca-Swiss compatibility for stable mounting
• 360° rotating lens body allows tilt and shift orientation adjustments
• Compatible with selected Lumix cameras

Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount In More Detail

Ultra-wide coverage for architectural framing

A 17mm focal length provides a broad perspective suited to photographing buildings, interiors and landscapes. This focal length sits between Laowa’s 15mm and 20mm tilt-shift lenses and offers a wide view that works well in confined interior spaces while maintaining natural perspective.

Perspective correction using shift movement

The lens incorporates a shift mechanism with a movement range of up to ±12mm on full-frame cameras. Shifting the optical axis allows photographers to adjust composition while keeping the camera body level, which helps prevent converging vertical lines when photographing buildings. Shift movement can also be used to capture multiple exposures for panoramic stitching without rotating the camera. By shifting the lens between frames, photographers can create wider panoramas while maintaining consistent perspective across the final stitched result.

Tilt adjustment for focus plane control

The tilt mechanism provides up to ±10° of adjustment, allowing the focus plane to be angled across the scene. Instead of remaining parallel to the sensor, the plane of focus can be aligned with the subject to extend depth of field at wider apertures. This can be useful in landscape and product photography where greater focus coverage is required. Tilt can also be used creatively to produce miniature-style effects where only a narrow area of the scene remains sharply focused.

Zero-D optical design

Laowa’s Zero-D optics controls distortion within the lens design rather than relying on digital correction. Straight architectural lines remain natural across the frame, which is particularly important when photographing buildings and interiors where distortion can be noticeable. Reducing distortion optically also limits the need for perspective correction during post-processing.

Close focusing for foreground detail

A minimum focusing distance of 25cm allows photographers to work close to subjects while maintaining the wide perspective typical of a 17mm lens. This allows strong foreground elements to be included within landscapes or architectural compositions while still keeping background details visible in the same frame. The close focusing ability can also be useful for product or tabletop photography where environmental context around the subject is required.

Practical filter compatibility

Many ultra-wide lenses require large square filter holders due to their front element design. This lens instead includes a standard 86mm filter thread, which allows photographers to attach screw-in filters directly. This simplifies the use of polarising filters or neutral density filters when photographing landscapes, architecture or long exposures.

Integrated tripod support and rotation

The lens includes a built-in tripod support that attaches directly to Arca-Swiss compatible tripod heads. This improves stability when using tilt or shift adjustments and helps maintain balance when mounted on a support system. The lens body can rotate through 360° which allows photographers to align the tilt or shift movement vertically or horizontally depending on the composition.

Compatibility Note for L Mount Cameras

The tilt-shift version of this lens is not compatible with the following Panasonic Lumix L Mount cameras:

• Panasonic Lumix S5 II
• Panasonic Lumix S1 II
• Panasonic Lumix S1R II
• Panasonic Lumix S1 II E
• Panasonic Lumix S5 II X

The lens can be used with other L Mount cameras including models from Leica and Sigma where tilt and shift movements operate normally.

Frequently Asked Questions

What is the difference between the tilt-shift and shift versions of this lens?

The tilt-shift version includes both tilt and shift mechanisms. Tilt adjusts the angle of the focus plane, while shift corrects perspective when photographing buildings or interiors.

Who is this lens best suited for?

Architectural photographers, interior photographers, landscape photographers and product photographers benefit from tilt and shift control for perspective correction and focus plane manipulation.

Can the lens be used on APS-C cameras?

Yes. The lens covers full-frame sensors and can also be used on APS-C cameras, producing a narrower field of view.

Does the lens support standard screw-in filters?

Yes. The front element includes an 86mm filter thread which accepts standard screw-in filters.

What creative effects can tilt produce?

Tilting the lens allows the focus plane to be angled across the scene, which can extend depth of field or create miniature-style effects depending on the composition.

Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount Specifications

What’s in the Box

• Laowa 17mm f/4 Zero-D Tilt-Shift Lens for L Mount
• Lens caps

Specifications
