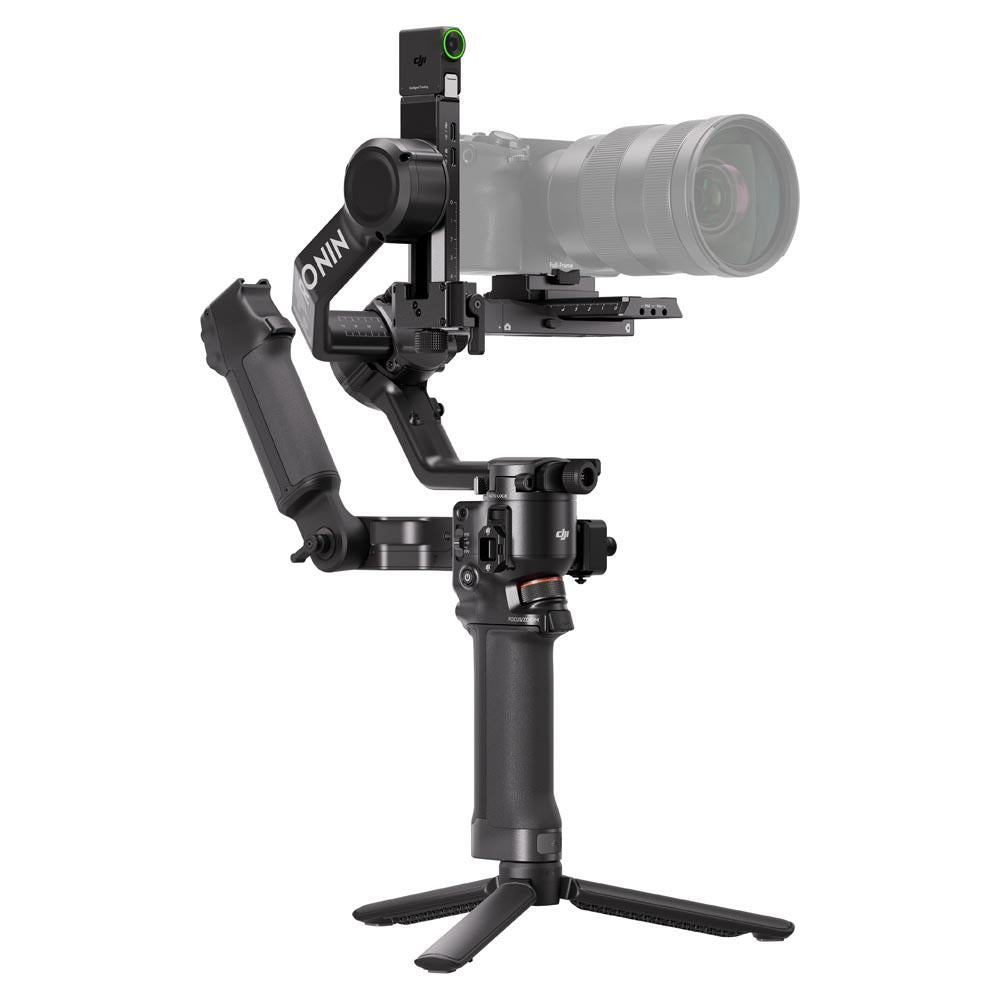

DJI RS 5 Gimbal Combo

DJI RS 5 Gimbal Combo Summary

he DJI RS 5 Gimbal Combo is a comprehensive stabilisation kit featuring DJI’s lightweight professional gimbal, which supports popular mirrorless camera setups weighing up to 3 kg. By including key accessories in the box, the Combo expands what the RS 5 can do straight away, without the need to add additional components later.

Alongside three-axis motorised gimbal stabilisation, touchscreen control, fine balancing adjustments, and automated axis locking, the Combo includes the Enhanced Intelligent Tracking Module for on-screen subject selection and tracking directly from the gimbal. The Electronic Briefcase Handle is also included, providing an alternative grip style with direct gimbal and camera control for low-angle and moving shots.

The RS 5 supports horizontal and native vertical shooting and integrates with DJI’s wider RS accessory system. The Combo is suitable for content creators, filmmakers, and hybrid shooters who want a ready-to-use stabilisation setup with more control, tracking, and handling options from the outset.

Overview of improvements

The DJI RS 5 introduces changes that improve setup speed, subject tracking, and control during movement compared to the previous generation. With the Enhanced Intelligent Tracking Module included in the Combo, the tracking view is displayed directly on the gimbal touchscreen, allowing subjects to be selected and monitored without using an external display. Tracking support extends beyond a single person to include individual vehicles and pets, with on-screen framing used to select or confirm a subject when conditions allow.

Motor performance increases over the previous generation, improving stability during faster movement and vertical shooting, supported by the fifth-generation RS stabilisation algorithm. Automated axis locks are refined for quicker start-up and shutdown, while charging speed and standby time improve when used with compatible battery grips and chargers. A built-in Z-axis indicator provides real-time feedback during movement, helping operators maintain steadier motion while walking or changing pace.

DJI RS 5 Combo Key Features

• 3-axis motorised stabilisation with fifth-generation RS algorithm
• 1.8-inch OLED touchscreen for settings and subject selection
• Enhanced Intelligent Tracking Module included for on-screen subject tracking
• Automated axis locks engage on power-off and release on start-up
• Balance knobs with low-friction internal surfaces enable precise adjustment
• Native horizontal and vertical shooting without additional accessories
• Dual-layer quick-release plates for switching between gimbal and tripod setups
• Bluetooth camera control supports cable-free shutter operation on compatible cameras

DJI RS 5 Gimbal Combo in More Detail

Stabilisation and payload

The DJI RS 5 uses a 3-axis motor system driven by the fifth-generation RS stabilisation algorithm for stable results during handheld movement and vertical shooting. Motor torque increases by up to 50 percent over the previous generation, helping the gimbal maintain control with heavier mirrorless camera setups and faster directional changes. With a tested payload capacity of up to 3 kg, the RS 5 supports common full-frame and APS-C mirrorless cameras paired with standard f/2.8 zoom lenses when correctly balanced.

Despite this capacity, the gimbal weighs just 1.46 kg including the battery grip and quick-release plates, helping reduce fatigue during extended handheld recording.

Intelligent tracking with touchscreen operation

With the Enhanced Intelligent Tracking Module included in the Combo, subjects can be selected and monitored directly from the 1.8-inch OLED touchscreen. This removes the need for an external monitor for basic framing and tracking confirmation.

Tracking support extends beyond a single person to include individual vehicles and pets, with subjects identified on screen and selected via touch input or dial control. In supported situations, the system can reacquire a tracked person if they briefly leave the frame, with a range of up to 10 metres. Tracking behaviour depends on subject movement, framing, and environment, but control remains gimbal-based throughout.

Handling, balance and movement

Balancing adjustments are handled through fine-tuning knobs on each axis, using a leadscrew mechanism that allows small, precise changes without shifting the full camera rig. Low-friction internal surfaces help maintain smooth movement during setup, including with heavier configurations.

A built-in Z-axis indicator provides real-time feedback during movement, helping operators adjust their walking motion to reduce vertical bounce. Second-generation automated axis locks engage automatically when the gimbal powers down or enters sleep, then release on start-up, speeding up transitions between shooting and storage.

Which camera setups work with the DJI RS 5?

The DJI RS 5 supports a range of common full-frame and APS-C mirrorless camera setups paired with standard f/2.8 zoom lenses, when correctly balanced within the rated payload.

• Sony FX3 and Sony Alpha bodies such as the Sony A7 IV with a 24–70mm f/2.8
• Canon EOS R5 Mark II with RF 24–70mm f/2.8
• Nikon Z6 III or Nikon Z7 II with Z 24–70mm f/2.8
• Panasonic full-frame bodies with a 24–60mm f/2.8
• Fujifilm APS-C bodies such as the X-T5 with a 16–55mm f/2.8

Shooting modes and configuration

The gimbal supports both horizontal and vertical shooting without needing any accessories. Using third-generation native vertical shooting, the camera mount can be rotated and secured in a vertical orientation within seconds, without requiring rebalancing on the tilt or pan axes.

Dual-layer quick-release plates combine an Arca-Swiss upper plate with a Manfrotto-compatible lower plate, allowing quick switching between gimbal and tripod setups while retaining balance position memory.

Power, charging and battery life

The included battery grip supports fast charging and extended standby time when used with compatible USB-C PD chargers. Under supported conditions, a full charge can be completed in approximately one hour, reducing downtime between shoots. Higher-capacity battery grips can extend standby time further than the included BG33 battery grip for longer production days or travel.

Camera control and accessories

Bluetooth camera control supports cable-free shutter operation on compatible cameras from Sony, Canon, Nikon, Panasonic, and Fujifilm. The included Electronic Briefcase Handle provides single-handed control with direct access to gimbal and camera functions, supporting low-angle and moving shots.

The RSA communication port enables connection to additional accessories such as focus motors, remote control grips, and video transmission systems. Support for DJI focus motors allows lens focus or zoom to be controlled directly from the gimbal, while compatibility with DJI SDR Transmission enables live monitoring and remote operation. The open RS SDK also allows third-party accessories to integrate with the system.

Frequently asked questions

How many subjects can the DJI RS 5 track at once when using intelligent tracking?

The DJI RS 5 can track one subject at a time when using intelligent tracking.

What types of subjects can be tracked?

When used with the Enhanced Intelligent Tracking Module, tracking supports a single person, vehicle, or pet, depending on scene conditions and subject movement.

What is the difference between the Enhanced Intelligent Tracking Module and the Intelligent Tracking Module?

The Enhanced module displays the tracking view directly on the touchscreen and supports additional subject types. The standard module only supports human tracking and does not show the tracking view on the screen.

Can the Intelligent Tracking Module be upgraded to the Enhanced version using firmware?

No. The Intelligent Tracking Module cannot be upgraded via firmware.

How long does the battery last and how long does it take to charge?

Standby time is approximately 14 hours with the standard battery grip. A full charge takes around one hour when using a compatible USB-C PD charger.

Can the gimbal be used while charging?

Yes. Operation is supported while connected to a power source.

Is it waterproof?

No. It is not sealed against water or dust and should be kept away from moisture and debris.

What material is the body made from?

The main device is made from aluminium alloy.

Are older DJI RS accessories compatible with this model?

Yes. Many DJI RS accessories including grips, battery grips, tripods, and control handles, remain compatible. Read our RS 5 guide for full accessory compatibility.

DJI RS 5 Lifestyle images

What’s in the box

• 1x DJI RS 5 Gimbal Stabilser
• 1x Quick-Open Tripod
• 1x DJI Logo Sticker
• 1x Carrying Case
• 1x Lens-Fastening Support
• 1x L-Shaped Cable (USB-C, 13 cm)
• 1x Screw Kit
• 1x RS 5 Upper Quick-Release Plate
• 1x RS 5 Lower Quick-Release Plate
• 1x BG33 Battery Grip
• 1x RS Enhanced Intelligent Tracking Module
• 1x Electronic Briefcase Handle
• 1x Multi-Camera Control Cable (USB-C, 30 cm)

DJI RS 5 Specifications

Specifications
