DJI Mic Mini 2 (2TX + 1RX + Charging Case)

Key Features

• Dual-transmitter system supports two-person audio capture
• Up to 400m wireless transmission range in open environments [12]
• Up to 48-hour operating time with charging case [8]
• Three voice tone presets for tonal control [4]
• Two-level noise cancellation for different environments [5]
• Automatic limiting prevents audio clipping [6]
• DJI OsmoAudio direct connection enables receiver-free recording [7]

DJI Mic Mini 2 (2TX + 1RX + Charging Case) Summary

The DJI Mic Mini 2 (2TX + 1RX + Charging Case) is a two-person wireless microphone kit for recording with cameras, smartphones, tablets and computers. It is the most complete kit in the Mic Mini 2 range, combining two transmitters, a receiver, charging case and core accessories for multi-device workflows.

Each transmitter weighs approximately 11g without the magnetic clip or magnet, supporting discreet use for interviews, vlogging, livestreams and travel recording. The system records omnidirectional 48kHz 24-bit audio and includes three voice tone presets, two noise cancelling levels, automatic limiting and safety track recording for consistent capture across different environments.

With the DJI Mic Mini Receiver, transmission reaches up to 400m in open, unobstructed and interference-free conditions, while the charging case extends total operating time to 48 hours[8][9][12].

Overview and Key Improvements

This second-generation system extends transmission distance to up to 400m when used with the included receiver, increasing usable range for outdoor and event recording[12]. Battery performance is expanded, with transmitters operating up to 11.5 hours and the receiver up to 10.5 hours, while the charging case extends total runtime to 48 hours[8][13].

Audio control is expanded with three selectable voice tone presets and two levels of noise cancellation, allowing adjustment to different recording conditions[4][5]. Automatic limiting and safety track recording add protection against clipping, reducing the risk of unusable audio during unpredictable recordings[6].

DJI Mic Mini 2 (2TX + 1RX + Charging Case) In More Detail

Magnetic Covers

The transmitters include interchangeable magnetic front covers in Obsidian Black and Glaze White as standard, with additional multi-colour magnetic covers and windscreens available separately[1]. DJI also offers Time Series magnetic front covers created in collaboration with illustrator Victo Ngai, featuring four themed designs representing stages of creativity.

Transmitter Design

Each transmitter measures 28.58×28.04×13.52mm and weighs approximately 11g without the magnetic clip or magnet[9]. The body supports clip-on and magnetic attachment using the included clip and magnet. The clip rotates, allowing positioning sideways or inverted while maintaining alignment with the sound source.

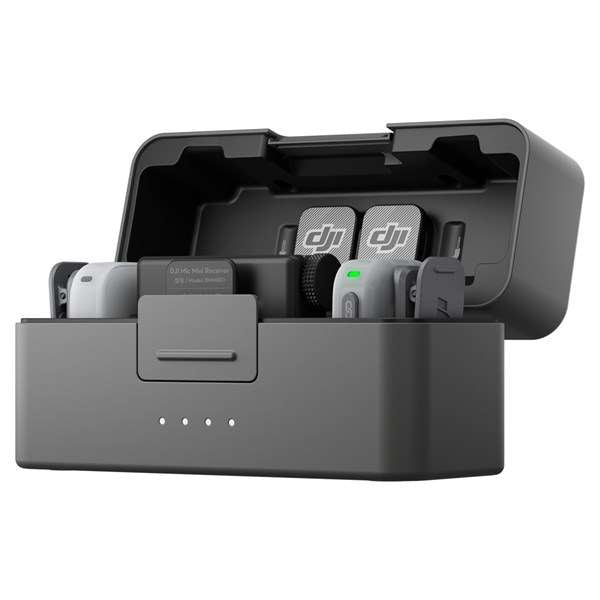

Charging Case Storage

The charging case stores two transmitters, one receiver and accessories. It supports storage of two windscreens, two magnetic clips, two magnets, two magnetic covers or one 3.5mm TRS cable, along with the mobile adapter. Only one of the magnet, clip or cable can be stored in specific sections at a time. The case measures 106.30×42.50×59.20mm and weighs approximately 159.3g.

Mixed Device Pairing

The receiver supports connection with up to two transmitters. The DJI Mic Mini Receiver pairs with Mic Mini and Mic Mini 2 transmitters. When used with the DJI Mic Series Mobile Receiver, green mode supports Mic Mini and Mic Mini 2, while blue mode allows mixed pairing with Mic Mini 2, Mic Mini, Mic 2 and Mic 3 transmitters[3].

Wireless Transmission

Audio is transmitted using a GFSK 2Mbps system on 2.4GHz frequencies. Transmission reaches up to 400m in open, unobstructed conditions with the included receiver[12]. With a mobile receiver, range is up to 300m in green mode and 200m in mixed blue mode.

Audio Capture

The system records omnidirectional audio with a frequency response of 20Hz to 20kHz and a maximum sound pressure level of 120dB SPL. Equivalent noise is rated at 24dBA. Recording is captured at 48kHz 24-bit for consistent audio capture across a wide dynamic range.

Voice Tone Presets

Three selectable presets adjust tonal output. Regular provides balanced sound, Bright enhances high frequencies, and Rich increases low-frequency presence[4].

Noise Cancellation

Two levels of noise reduction are available. Basic reduces low-level background noise, while Strong reduces higher ambient noise levels[5]. When connected directly to a phone, Strong mode is applied by default.

Automatic Limiting

Automatic limiting reduces gain when input levels are too high, preventing clipping during recording[6].

Safety Track

Safety track records a secondary audio track at -6dB alongside the main track, providing a backup if levels peak unexpectedly.

Gain Adjustment

Receiver gain is adjustable across five levels using a physical dial for quick control during recording.

Low Cut

Low cut attenuates frequencies below 100Hz to reduce low-frequency noise. It is enabled through the DJI Mimo app and is unavailable during direct Bluetooth connection.

Windscreen

Included windscreens reduce wind noise during outdoor recording. Additional multi-colour windscreens are available separately[1].

OsmoAudio Direct Connection

Transmitters connect directly to supported DJI devices including Osmo Pocket 3, Osmo 360, Osmo Nano and Osmo Action 6 without a receiver[7].

Battery Performance

Transmitters operate up to 11.5 hours and the receiver up to 10.5 hours. The charging case extends total system runtime to approximately 48 hours with up to 3.6 recharge cycles.

Power Management

Fast charging provides approximately one hour of use from a five-minute charge[14]. The system supports automatic sleep, auto power-off after 15 minutes and camera-synchronised power on/off.

Bluetooth Connection

Transmitters support Bluetooth 5.3 for direct smartphone connection. Recording is supported in compatible third-party apps.

Wired Monitoring

The mobile receiver supports wired monitoring via USB-C with compatible analogue headphones, with output rated at 20mW at 1kHz with a 32Ω load.

Device Compatibility

The receiver connects to cameras via 3.5mm TRS and supports smartphones, tablets and computers. It can draw power from a connected device or external power source. Lightning connection requires a separate adapter.

Firmware Updates

Firmware and settings are managed through the DJI Mimo app via USB-C or Bluetooth. The receiver supports updating two transmitters simultaneously.

Use Cases

The system supports recording in a range of scenarios including interviews, live events, travel and outdoor activities, supporting clear speech recording in both quiet and noisy environments.

Learn more about the full range in our DJI Mic Mini 2 Review and Comparison.

---

Frequently asked questions

Is the DJI Mic Mini 2 compatible with cameras and smartphones?

Yes. The included DJI Mic Mini Receiver connects to cameras, smartphones, computers and tablets. The optional DJI Mic Series Mobile Receiver also supports connection to smartphones directly. Bluetooth connection to phones is available via the transmitter, though some features including voice tone presets are not available in this mode.

Additionally, iPhones require a Lightning adapter.

Can I use it with DJI action cameras or Osmo devices?

Yes. The DJI Mic Mini 2 Transmitters connect directly to Osmo Pocket 3, Osmo 360, Osmo Nano and Osmo Action 6 via DJI OsmoAudio, with no additional receiver required. Up to two transmitters can connect simultaneously, delivering 48kHz 24-bit audio.

What is the wireless transmission range?

Up to 400 m with the DJI Mic Mini Receiver in open, unobstructed, interference-free environments. Range is up to 300 m with the DJI Mic Series Mobile Receiver in green light mode, and up to 200 m in blue light mode for cross-model mixing.

Who is this kit best suited to?

The 2 TX + 1 RX + Charging Case configuration suits content creators, vloggers and interviewers who need to mic two subjects simultaneously, with extended operating time for longer shoots or live events.

How does it compare to the DJI Mic Mini (first generation)?

The DJI Mic Mini 2 adds voice tone presets, two-level adjustable noise cancellation, automatic limiting, DJI OsmoAudio direct connection and updated magnetic cover options. Compatibility with original DJI Mic Mini transmitters is maintained via the DJI Mic Mini Receiver.

How long does the battery last?

Each transmitter provides approximately 11.5 hours and the receiver approximately 10.5 hours per charge. A fully charged charging case extends total combined operating time to 48 hours, and a 5-minute charge provides approximately 1 hour of use for both transmitter and receiver.

Is noise cancellation adjustable?

Yes. Basic and Strong noise cancellation levels are selectable via the DJI Mimo app. When connected directly to a compatible Osmo device via OsmoAudio, the level can be set on the device interface. When the transmitter connects directly to a phone via Bluetooth, Strong noise cancellation applies automatically and cannot be changed.

What’s the difference between this and the DJI Mic Mini 2 (1 TX + 1 RX)?

This version includes two transmitters and a charging case, allowing two-person recording and extended operating time. The 1 TX + 1 RX kit includes a single transmitter and receiver, making it more suited to solo recording setups.

Lifestyle images showing use cases

DJI Mic Mini 2 Specifications

Transmitter
Model	DMMT02
Dimensions	28.58×28.04×13.52 mm (L×W×H)
Weight	Approx. 11 g (excluding the magnet clip and magnet)
Wireless Mode	GFSK 2Mbps
Equivalent Isotropic Radiated Power (EIRP)	< 20 dBm
Wireless Operating Frequency	2.400–2.4835 GHz
Bluetooth Protocol	Bluetooth 5.3
Bluetooth Operating Frequency	2.400–2.4835 GHz
Bluetooth Transmitter Power (EIRP)	< 20 dBm
Battery Type	Li-ion
Battery Capacity	114 mAh
Battery Energy	0.45 Wh
Battery Voltage	3.87 V
Charging Specification	Max 5 V
Charging Temperature	5° to 45° C (41° to 113° F)
Operating Temperature	-10° to 45° C (14° to 113° F)
Charging Time	Approx. 70 minutes
Operating Time	Approx. 11.5 hours
Receiver
Model	DMMR01
Dimensions	46.50×29.61×19.32 mm (L×W×H)
Weight	Approx. 17.8 g (including the interface cover)
Wireless Mode	GFSK 2Mbps
Equivalent Isotropic Radiated Power (EIRP)	< 20 dBm
Operating Frequency	2.400–2.4835 GHz
Bluetooth Protocol	Bluetooth 5.3
Bluetooth Transmitter Power (EIRP)	< 20 dBm
Bluetooth Operating Frequency	2.400–2.4835 GHz
Battery Type	Li-ion
Battery Capacity	170 mAh
Battery Energy	0.66 Wh
Battery Voltage	3.87 V
Charging Specification	Max 5 V
Charging Temperature	5° to 45° C (41° to 113° F)
Operating Temperature	-10° to 45° C (14° to 113° F)
Charging Time	Approx. 100 minutes
Operating Time	Approx. 10.5 hours
Charging Case
Model	DMMC02
Dimensions	106.30×42.50×59.20 mm (L×W×H)
Weight	Approx. 159.3 g (charging case only)
Battery Type	Li-ion
Battery Capacity	1950 mAh
Battery Energy	7.55 Wh
Battery Voltage	3.87 V
Charging Specification	Max 5 V, 3 A
Charging Temperature	5° to 40° C (41° to 104° F)
Operating Temperature	5° to 45° C (41° to 113° F)
Charging Time	Approx. 2 hours
Charging Cycles for TX and RX	Approx. 3.6 full charges for two transmitters and one receiver
General
Polar Pattern	Omnidirectional
Frequency Response	Low Cut Off: 20 Hz – 20 kHz
Frequency Response (Low Cut On)	100 Hz – 20 kHz
Maximum Sound Pressure Level	120 dB SPL
Equivalent Noise	24 dBA
Monitor Output Power	20 mW@1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
Max Transmission Distance	400 m

NOTES

[1] Obsidian Black and Glaze White magnetic front covers are included as standard; additional colour options are sold separately.

[2] The charging case stores transmitters with windscreens, magnetic covers, clips or magnets attached, with specific internal storage limitations to prevent damage.

[3] The receiver supports up to two transmitters, while the mobile receiver supports mixed pairing across Mic Mini 2, Mic Mini, Mic 2 and Mic 3 transmitters.

[4] Voice tone presets are selected via the DJI Mimo app and default to Regular; presets are not available during direct Bluetooth connection.

[5] Noise reduction levels can be adjusted via the DJI Mimo app or supported DJI devices; when connected directly to a phone, Strong mode is applied by default.

[6] Automatic limiting is enabled by default when paired with a receiver and can be adjusted via the DJI Mimo app; behaviour varies depending on connection method.

[7] Transmitters support direct connection to compatible DJI devices via OsmoAudio, with operating time reduced to approximately 7–8 hours in this mode.

[8] Total operating time is measured using the charging case under controlled conditions and may vary depending on usage.

[9] Transmitter weight excludes the magnetic clip and magnet.

[10] Device compatibility varies; refer to the DJI Mic Mini 2 compatibility list for supported devices.

[11] Firmware updates and parameter adjustments are managed through the DJI Mimo app.

[12] Transmission distance reaches up to 400m with the standard receiver, 300m with the mobile receiver in green mode and 200m in mixed blue mode under open, interference-free conditions.

[13] Operating time figures are measured under controlled conditions and may vary depending on environment and usage.

[14] Fast charging provides approximately one hour of use from a five-minute charge when battery levels are below 25% under test conditions.

[15] Automatic power-saving activates when no signal is detected, with behaviour depending on configuration.

[16] Receiver power behaviour may vary depending on camera model when using a camera adapter.

[17] Lightning devices require a USB-C to Lightning adapter for power and operation.

[18] Bluetooth connection supports recording in compatible third-party apps only; native camera apps are not supported.

[19] Multi-channel and extended system configurations require additional accessories and are only supported by selected devices and software.

[20] All data is measured in controlled conditions and actual performance may vary; product images are for reference only and the final product may differ.

What's in the Box

• 2x DJI Mic Mini 2 Transmitter
• 1x DJI Mic Mini Receiver
• 1x DJI Mic Mini 2 Charging Case
• 2x DJI Mic Mini 2 Windscreen (Black/Gray)
• 2x DJI Mic Mini 2 Magnetic Front Cover (Obsidian Black)
• 2x DJI Mic Mini 2 Magnetic Front Cover (Glaze White)
• 2x DJI Mic Mini 2 Magnetic Clip
• 2x DJI Mic 3 Magnet
• 1x DJI Mic Mini Carrying Pouch
• 1x DJI Mic Mini Mobile Phone Adapter (USB-C)
• 1x DJI Mic Mini Camera Audio Cable (3.5mm TRS)
• 1x DJI Mic USB-C Charging Cable

---

Specifications

Transmitter
Model	DMMT02
Dimensions	28.58×28.04×13.52 mm (L×W×H)
Weight	Approx. 11 g (excluding the magnet clip and magnet)
Wireless Mode	GFSK 2Mbps
Equivalent Isotropic Radiated Power (EIRP)	< 20 dBm
Wireless Operating Frequency	2.400–2.4835 GHz
Bluetooth Protocol	Bluetooth 5.3
Bluetooth Operating Frequency	2.400–2.4835 GHz
Bluetooth Transmitter Power (EIRP)	< 20 dBm
Battery Type	Li-ion
Battery Capacity	114 mAh
Battery Energy	0.45 Wh
Battery Voltage	3.87 V
Charging Specification	Max 5 V
Charging Temperature	5° to 45° C (41° to 113° F)
Operating Temperature	-10° to 45° C (14° to 113° F)
Charging Time	Approx. 70 minutes
Operating Time	Approx. 11.5 hours
Receiver
Model	DMMR01
Dimensions	46.50×29.61×19.32 mm (L×W×H)
Weight	Approx. 17.8 g (including the interface cover)
Wireless Mode	GFSK 2Mbps
Equivalent Isotropic Radiated Power (EIRP)	< 20 dBm
Operating Frequency	2.400–2.4835 GHz
Bluetooth Protocol	Bluetooth 5.3
Bluetooth Transmitter Power (EIRP)	< 20 dBm
Bluetooth Operating Frequency	2.400–2.4835 GHz
Battery Type	Li-ion
Battery Capacity	170 mAh
Battery Energy	0.66 Wh
Battery Voltage	3.87 V
Charging Specification	Max 5 V
Charging Temperature	5° to 45° C (41° to 113° F)
Operating Temperature	-10° to 45° C (14° to 113° F)
Charging Time	Approx. 100 minutes
Operating Time	Approx. 10.5 hours
Charging Case
Model	DMMC02
Dimensions	106.30×42.50×59.20 mm (L×W×H)
Weight	Approx. 159.3 g (charging case only)
Battery Type	Li-ion
Battery Capacity	1950 mAh
Battery Energy	7.55 Wh
Battery Voltage	3.87 V
Charging Specification	Max 5 V, 3 A
Charging Temperature	5° to 40° C (41° to 104° F)
Operating Temperature	5° to 45° C (41° to 113° F)
Charging Time	Approx. 2 hours
Charging Cycles for TX and RX	Approx. 3.6 full charges for two transmitters and one receiver
General
Polar Pattern	Omnidirectional
Frequency Response	Low Cut Off: 20 Hz – 20 kHz
Frequency Response (Low Cut On)	100 Hz – 20 kHz
Maximum Sound Pressure Level	120 dB SPL
Equivalent Noise	24 dBA
Monitor Output Power	20 mW@1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
Max Transmission Distance	400 m
