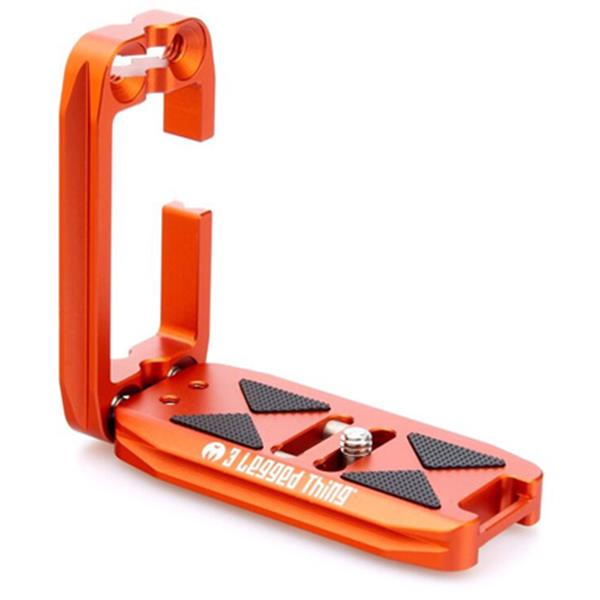

3 Legged Thing Ellie Universal L Bracket Copper

Key Features

• Universal L-Bracket for mirrorless and DSLR cameras
• Choice of two screw mount slots for optimal positioning of the camera
• Adjustable base length thanks to rigid stainless steel rods held in place with stainless steel screws
• Opening in vertical aspect can be set in one of four positions for better cable and accessory connections
• Dual ¼”-20 screw mounts on vertical aspect for adding accessories (monitors, microphones etc) *Due to the nature of this product, these mounts are not suitable for direct connection of single-mount sling straps*
• Precision engineered plate profiles for secure connection to your tripod head
• Vertical aspect can be mounted downward to create a rocker mount for your tripod
• Rear of base plate is sloped to better enable screen access
• Detachable release plate base can be used in isolation
• Base slot for strap attachment

3 Legged Thing Ellie Universal L-Bracket Copper Colour Ex Demo

3 Legged Thing has designed one of the most versatile L-brackets on the market with the standard size Ellie in Copper Orange colour. It has a base length of 85mm adjustable to 95 mm - 128 mm, making it one of the most universal L-brackets around. It fits most larger cameras including full frame mirrorless and DSLR’s, with a short version (see below) for compact APS-C cameras like Fujifilm X or Lumix and Olympus micro four thirds.

Ellie’s unique vertical aspect has dual-Arca Swiss profiled edges and symmetrical ends with twin 1/4"-20 threads. This enables 8 different side configurations for unprecedented compatibility and functionality.

Compatible with standard Arca-Swiss clamps, Ellie features two different 2 screw mount slots in the base. This allows users to position the L-Bracket in the optimal position for their camera. The length of the bracket base can be adjusted thanks to two rigid stainless steel sliding bars which are then fixed into position by the user with the supplied tool. The rear edge of the base is sloped to better enable screen access. Ellie’s vertical aspect has an opening in one side, allowing users with L-shaped cable pins to connect accessories. This opening can be placed in one of four positions by inverting or reversing the vertical aspect, perfect fro mic cables, HDMI cables and other accessories.

3 Legged Thing Ellie Universal L-Bracket Copper Specifications

• Base Length - 95 mm - 128 mm
• Upright - 85mm
• Shoe - 38 mm Standard Arca-Swiss
• Weight - 96 g

3 Legged Thing Ellie modular L-Bracket System are available in the following options

Universal 85mm size Ellie L-Brackets for most full frame cameras:

• Ellie Copper (this model) and an optional Base 85 copper
• Ellie Grey and an optional Base 85 Grey

Universal Short size Ellie L-Brackets for most compact APS-C size cameras

• Ellie Short Copper and an optional Base 70C copper
• Ellie Short Grey and an optional Base 70 Grey

Ellie PD for Peak Design Capture Clip And Arca-Swiss

• Ellie PD L Bracket Copper and an optional Base 85-PD copper
• Ellie PD L Bracket Grey and an optional Base 85-PD Grey
• Ellie PD Short L Bracket Grey and an optional Base 70-PD Grey
